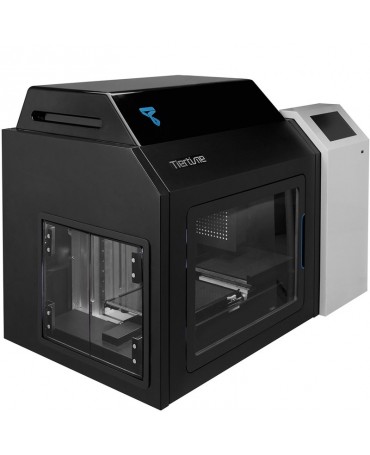

Tiertime X5 3D Printer

The Tiertime X5 is a professional continuous 3D printer targeted to small-scale manufacturing. It adopts a Melted Extrusion Model printing technology and has been designed for printing multiple jobs without interruption. To achieve this goal, it is engineered with a build plate auto-swapping mechanism and a clever print queue management function.

The Tiertime X5 is a sturdy yet reliable printer with a fully-enclosed design. It is equipped with a heated bed, which is automatically calibrated after each print job. Thanks to the auto-swapping system, the printer is capable of automatically ejecting a completed print from the build plate and reload up to 8 trays starting a new job immediately. This means it is capable of managing up to 8 different jobs in a row. To make this possible, the printer also includes a pause-n-print option, an end-of-the-filament detection system and an internal build plate vault that can house 12 print beds. These smart features along with a clever printing management system grant a seamless continuous 3D printing experience.

The Tiertime X5 includes a dual filtration system, which minimizes toxic emissions during printing. It uses a set of HEPA and activated carbon filters capable of capturing even the finest particles. In this way, you will always benefit from a clean and healthy 3D printing environment.

Aimed at professional users, the Tiertime X5 is the perfect solution for maker labs and 3D printing farms. Read our complete review for additional details.

Specifications:

• Print quality
• Materials
• Build volume
• Printer controls
• What’s in the box
• Look and feel
• Price

Print quality

The Tiertime X5 is a continuous MEM 3D printer that can print layers at 50 microns. This way you can produce parts with smooth exterior surfaces. The device reaches a print speed of 200 mm/s.

It is compatible with multiple nozzle diameter (from 0.2 to 0.5mm). This gives you the possibility to choose the nozzle size that best meets your printing needs. For example, when printing with a 0.2mm nozzle, you will get fine details and high accuracy, when printing with larger nozzles, you will benefit from a faster print speed.

The print head runs on rods with linear bearings, making the design more simple, lightweight and effective, all characteristics that are desirable in a 3D printer.

Materials

The Tiertime X5 comes with a single extruder that can heat up to 299°C.

Thanks to its enclosed chamber and heated plate, it can reliably print with ABS,  ABS+, PLA, TPU and other materials. The print bed heats up to 100°C.

The Tiertime X5 prints with 1.75mm filament, giving you wide material choice.

Build volume

The build area of 7 x 9 x 7.8 inches (180 × 230 × 200 mm) lets you print medium-sized objects with ease. Larger parts can be printed in parts.

Printer controls

The printer features a 7-inch full-color LCD touch display for direct operation. It can be paired to any computer via USB, LAN or over Wi-Fi. It can also be operated independently using a USB pen drive.

The Tiertime Print Queue allows stacking multiple files into a queue. In this way, multiple users can send their files to the printer and then access them via the integrated display or via the printer software.

The Tiertime X5 comes bundled with the proprietary UP Studio Version software. It runs on Windows and Mac operating systems and works with the most common 3D printing file formats, including up3, ups, tsk, stl, obj, 3mf, ply, off, and 3ds.

What’s in the box

• Tiertime X5 3D printer
• Build plate vault
• Perforated heated bed
• Extruder kit
• 7-inch full-color touchscreen
• Tiertime Print Queue management software

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

The Tiertime X5 is available in a black and gray color scheme. Its stylish look makes it ideal for low-volume manufacturing.

The printer dimensions are 33.4 x 24.6 x 20.5 inches (850 x 625 x 520 mm). It weighs 114.6 lb (52 kg).

Price

The price of the Tiertime X5 is $4,099.00, which is reasonable considering its continuous 3D printing capability and automated features.
