Raise3D E2 3D printer

GET EXTRA 5% OFF – USE CODE "RAISE5"!

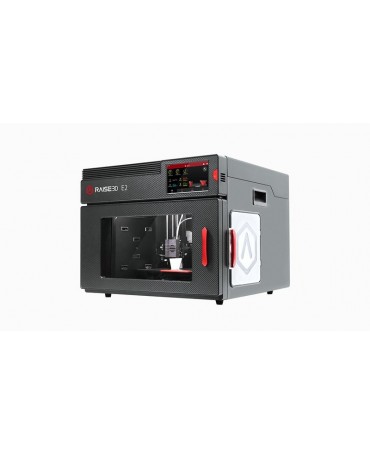

The Raise3D E2 is a high-performance FDM 3D printer equipped with IDEX (Independent Dual Extruders). The autonomous print heads can print in both mirror and duplication mode, producing two parts or the identical part symmetrically at the same time and thus doubling produciton capabilities. The Raise3D E2 comes with a pack of advanced features for a hassle-free smooth 3D printing experience. It is the first 3D printer that includes a video-assisted offset calibration system. Engineered with such a setup along with a heated printing platform, the E2 is particularly suitable for multi-material professional projects.

Check out our video review to have an idea of the device.

Thanks to its closed design and high quality hardware, the new E2 is compatible with several filaments, from standard to professional ones. Ideal for engineers, industrial designers, and other pro users, the machine is a well-priced workhorse that perfectly fits on any benchtop. Learn more about the printer’s technical properties covered further down this page

Specifications:

• Print quality
• Materials
• Build volume
• Printer controls
• What’s in the box
• Look and feel
• Price

Print quality

The Raise3D E2 is a professional dual-extrusion FDM 3D printer targeted at the professional market. The device is able to print objects at 20 microns layer height delivering high-resolution parts with almost no need for post-processing. The print head travels at up to 150 mm/s.

Its dimensional accuracy and precision make it ideal for producing patient-fit dental models, just like the product in the photo below.

Credit: @priamond.de / Instagram

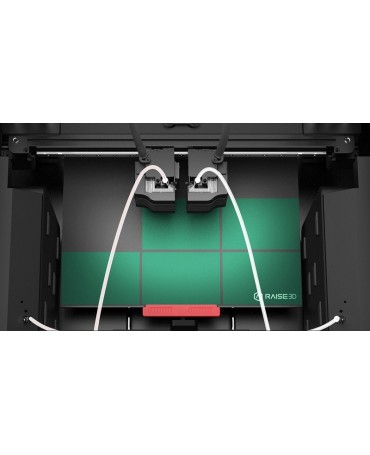

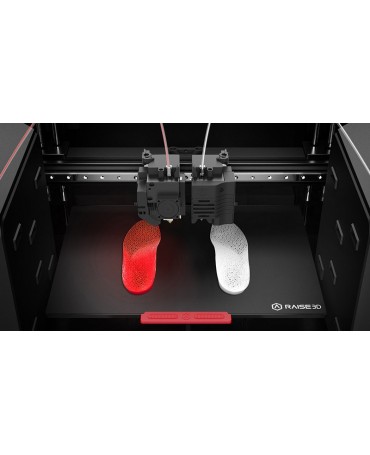

E2’s dual printing capability achieved by IDEX (Independent Dual Extruders) dramatically increases your productivity. Indeed, thanks to the mirror mode, it is capable of producing a model symmetrically cutting print time in half. The duplication mode allows for synchronized printing of two models at the same time, doubling the output volume.

The automatic bed leveling checks the bed calibration before each print. It keeps a constant distance between the nozzle and the build plate in order to create a uniform build area. It continuously adjusts the extruder based on the surface contour changes for proper bed adhesion and print quality.

Credit: @fotoogdesign / Instagram

The device comes stock with two 0.4 mm nozzles. It is also compatible with nozzles from 0.2 to 1.0 mm in diameter. By replacing the nozzle, you can achieve the print speed and quality your project requires.

Materials

The E2 can process a wide range of filaments. Namely, it can print with PLA, ABS, HIPS, PC, TPU, TPE, NYLON, PETG, ASA, PP, PVA, Glass Fiber Infused, Carbon Fiber Infused, Metal Fill, Wood Fill, and many others.

One user 3D printed this model using PETG as support. The E2 printed it like a charm.

Credit: @fotoogdesign / Instagram

The printer is equipped with two V3P hotends. Their nozzles can heat up to 300 °C. When feeding the material, the optical run-out sensor constantly checks the material status and alerts you with a red light when the material is about to end. Then, the printer automatically pauses the job, giving you the possibility to replace the spool with a new one for a stress-free experience. The sensors detect filaments of any color, material, or hardness.

Unlike many FDM printers, the Raise3D E2 has a heated print bed and enclosed print chamber, which means it can reliably print with ABS-type materials. The flexible steel plate with Buildtak can reach a temperature of 110°C. By bending the bed, the ready prints can be quickly removed from the platform, minimizing potential print damage. The maximum nozzle temperature, in turn, can reach 300 °C.

The Raise3D E2 prints with 1.75 mm filament, providing you with a wide choice of materials.

Build volume

When printing in single-extrusion mode, the E2 can produce parts within a build area of 13 × 9.4 × 9.4 inches (330 × 240 × 240 mm). This lets you print most objects without having to break them up into small parts. The dual-extrusion mode features a slightly smaller manufacturing volume of 11.6 × 9.4 × 9.4 inches (295 × 240 × 240 mm).

Printer controls

The 7-inch touch screen lets you comfortably operate the printer and manage the printing settings. With a screen resolution of 1,024 x 600 pixels, it provides on-screen assistance and includes a visual model selection for convenient and user-friendly printing process.

The printer includes an internal memory of 1GB and an onboard flash memory of 8GB.

Credit: @fotoogdesign / Instagram

The machine offers USB, Ethernet, and Wi-Fi support.

The printer features an embedded Linux operating system. It comes integrated with ideaMaker slicing software providing handy tools and simple interface. The program runs on Windows, Mac OS, and Linux operating systems. It works with STL, OBJ, 3MF, and G-Code file formats.

What’s in the box

• Raise3D E2 3D printer
• IDEX extrusion kit
• Flexible build plate with Buildtak
• Hepa filters with activated charcoal
• 7-inch touch screen
• ideaMaker slicing software

For some items, package content may change. In case of any questions, please get in touch.

Raise3D Starter Bundle

Raise 3D starter bundle includes the set of consumables that will ensure the smoothest experience over time. They will be there when you need them.

• E2 Left Hot End Assembly
• E2 Right Hot End Assembly
• E2 Flexible Plate+Printing surface
• E2 Buildtak Printing Surface
• E2 Air filter

Look and feel

The Raise3D E2 is available in black with red trimmings. Its stylish look makes it ideal for professional applications in a variety of industries, including digital dentistry.

The printer dimensions are 23.9 × 23.5 × 18.3 inches (607 × 596 × 465 mm). The spool holder is mounted on the side of the printer.

Price

The price of the Raise3D E2 desktop 3D Printer is $2,999.00, which is reasonable considering its functionality, smart features, and printing capability.

Warranty

The up-to-date warranty policy can be found here:https://s1.raise3d.com/2019/12/Raise3D-Limited-Warranty.pdf
