Raise3D Industrial PPA GF 1.75 mm 1 kg

The Raise3D Industrial PPA GF is a glass fiber-reinforced composite material with PPA (polyphthalamide) polymer used as a matrix. PPA, or high-performance Nylon, has higher melting point and glass transition temperature, lower water uptake, and better dimensional stability than PA-based materials. The addition of glass fiber improves mechanical properties of PPA and makes the Raise3D PPA GF a perfect material for end-use part manufacturing.

Due to its outstanding quality and excellent price-performance ratio, the PPA GF is widely used to produce functional parts in automotive, aerospace, electrical and electronics, and other industries. The printed models can be further annealed for 4–8 hours at 80–100 °C to obtain optimal mechanical properties.

The manufacturer recommends drying the filament at 80–100 °C for 4–6 hours before printing to ensure proper printing quality. It is strongly recommended to use the Industrial PPA GF filament with the Raise3DE2CF orRMF500 3D printers, which are specifically designed to work with high-performance fiber-reinforced composites. Using an abrasion-resistant nozzle will prevent the risk of nozzle wear, which often occurs to default brass nozzles. If support structures are printed with the same material as the model, they need to be removed after annealing. The PPA GF is also compatible with the Raise3D Industrial PPA Support filament.

Recommended printing parameters:

• Nozzle temperature: 280–320 °C
• Bed temperature: 65–80 °C
• Layer height: 0.1–0.25 mm
• Printing speed: 30–120 mm/s
• Cooling fan: off
• Drying temperature: 80–100 °C for 4–6 hours

Specifications

• Density (ISO 1183): 1.16 g/cm³
• Melt index (280 °C, 2.16 kg): 15 g/10 min
• Heat deflection temperature: 101 °C (ISO 75 1.8 MPa); 147 °C (ISO 75 0.45 MPa)
• Melting temperature (ISO 11357): 225 °C
• Moisture content (ISO 62: Method 1): 0.6%
• Young’s modulus, X-Y (ISO 527): 4850 ± 200 MPa
• Tensile strength, X-Y (ISO 527): 89 ± 3 MPa
• Elongation at break, X-Y (ISO 527): 2.2 ± 0.1%
• Mono-layer Z-axis tensile strength: 30.0 ± 1.4 MPa
• Bending modulus, X-Y (ISO 178): 4580 ± 150 MPa
• Bending strength, X-Y (ISO 178, GB/T 9341): 143 ± 12 MPa
• Charpy impact strength, X-Y (ISO 179): 6.0 ± 1.0 kJ/m²

Spool specs

• Filament diameter: 1.75 mm
• Filament weight: 1 kg
• Available colors: Natural / Orange
• Color attribute: Solid

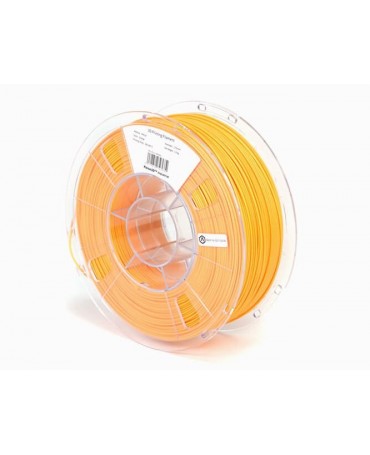

The Raise3D Industrial PPA GF 1.75 mm glass fiber-reinforced filament is sold in 1 kg spools. It comes vacuum-sealed with desiccant.
