Thunk3D DT300 Dental 3D Scanner

The Thunk3D DT300 is a professional desktop 3D scanner designed for dental industry needs. It boasts automated operation, remarkable accuracy, convenient design, and user-friendly software. Due to the reliable hardware components, the machine offers highly detailed scans in a quick and easy way, which fits both new and experienced users.

The device employs white light technology and dual 5 MP camera to reconstruct an object as a 3D model that can be further exported to Exocad software. In contrast to other desktop 3D scanners, the Thunk3D DT300 allows rotating an object at many different angles to obtain all necessary data. With a decent scan volume and operating speed, it ensures maximum efficiency and is able to make a complete impression model in 21 scans, denture / bite models — in 9 scans, and separated models in 15 scans.

The integrated scanning software has an intuitive interface and manifold automated tools to ensure fast and quality data acquisition and editing. For the user’s convenience and time-saving, the device also provides an open API and compatibility with Exocad.

Considering all the highlighted characteristics, the Thunk3D DT300 makes an ideal tool for professional use. It supports multiple dental scan applications, including occlusion, articulator, waxup, impression, denture, texture, all-in-one, and more.

Read on to find out more about the Thunk3D DT300 dental 3D scanner and its main properties.

Scan accuracy

The Thunk3D DT300 is a professional desktop 3D scanner with 0.1 mm resolution and outstanding accuracy of < 10 µm. Due to the DLP white-light scanning technology, it is capable of capturing the finest details to ensure reliable results, which is crucial for dentistry. In addition, the device is equipped with two 5 MP cameras providing higher resolution scans.

Scan volume

The Thunk3D DT300 features a decent scanning area for rendering dental models of different sizes. Specifically, the field of view stands at 120 x 100 mm. The device can accurately capture objects from 10 to 150 mm in length. Overall, the working platform of the DT300 can arrange up to 12 teeth units.

Scanner controls

The Thunk3D DT300 operates through a plugged computer. It adopts a 2.0 USB port, which ensures stable data transmission.

The device is fully automated and allows multi-angle scanning in a single click due to its optimized construction.

For a detailed workflow, check out the official video from Thunk3D:

Software

For the Thunk3D DT300 3D scanner, the developer provides the dedicated software that is specially designed for dental application. The program is quite powerful in terms of automation and offers a clear, intuitive interface as well as a short learning curve. Thanks to a number of handy tools, it generally optimizes and significantly simplifies 3D scanning workflow.

Apart from this, the Thunk3D DT300 comes with an open API and is fully compatible with Exocad. It exports files in the common STL, PLY, and AC formats, flexibly integrated in most CAD/CAM solutions.

What’s in the box

• Thunk3D DT300 dental 3D scanner
• Essential parts required for operation
• All the necessary cables
• Calibration board
• Markers
• U disk
• Scanning software
• Quality certification
• Quick start guide

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

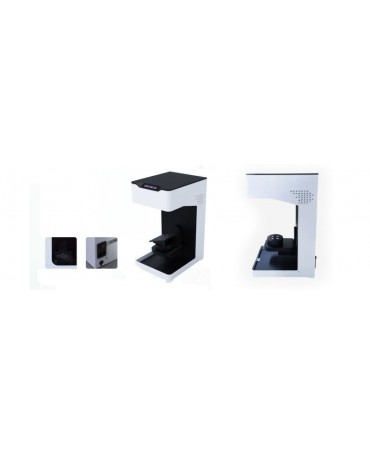

The Thunk3D DT300 is available in white with black trimmings. Its stylish look makes it ideal for professional application. The device features an open modular design, which will decorate any clinic or dental lab.

Price

To learn the current price of the Thunk3D DT300 dental 3D scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
