Einscan HX2 V2 3D Scanner

The Einscan HX2 is an industrial handheld 3D scanner from the Shining 3D's major series of products. This Einscan model combines two light sources: blue laser and structured light. It is a premium lightweight device with a futuristic and ergonomic design that can be taken to remote sites for scanning.

In contrast to theoriginal HX model, the improved HX2 boasts 26 laser lines instead of 14 alongside increased scanning speed. The latter results in faster and more efficient data capturing as well as overall smoother 3D scanning experience.

The Einscan HX2 boasts high-resolution scans, large scan volume, fast operation speed, advanced software, and a handful of other useful features for truly professional experience in reverse engineering and more. It offers an innovative hybrid system that employs dual blue LED light scanning technology allowing it to enter the rapid 3D scanning mode. Besides, there is a laser scanning mode, which is less sensitive to ambient light, designed to capture dark-colored models and objects with reflective surfaces. Thanks to its built-in color camera, the Einscan HX2 scanner supports full color / texture capturing.

The recommended object size range is between 30 and 300 cm.

The Einscan HX2 hybrid blue laser and LED light handheld 3D scanner greatly improves scanning materials adaptability and is compatible with a wider range of object sizes for more application possibilities. Therefore, it can be used in a plethora of different areas, such as:

• Architecture
• Art and generative design
• Reverse engineering
• Manufacturing
• Industrial engineering
• AR, VR, 3D modeling
• Heritage preservation, artifact restoration
• Science and education
• Healthcare
• Full-body and partial human scans

Navigation

• Scan accuracy
• Scanning mode specifics
• Scan volume
• Scanning tips
• Scanner controls
• Software
• What’s in the box
• Look and feel
• Price
• Certification

Scan accuracy

The EinScan HX2 is a hybrid dual blue LED light and blue laser light handheld 3D scanner that features high accuracy and enhanced scan speed for most objects meeting multiple needs of users, including industrial applications. With blue laser and LED light innovatively integrated sources, it provides different precision and speed levels depending on the mode selected and light source applied. The Rapid Scan Mode can provide a minimum point distance of up to 0.05 mm at a speed of up to 1,200,000 points/s. The Laser Scan Mode with multiple blue laser lines allows scanning at up to 960,000 points/s providing a level of accuracy of up to 0.04 mm.

Scanning modes specifics

Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into the EinScan HX2 handheld 3D scanner for more versatility and better performance with two scanning modes. LED light scanning allows rapid 3D scanning, while laser scanning, which is less sensitive to ambient light, provides better performance to reflective and dark color surface.

Scan volume

The EinScan HX2 hybrid laser and blue LED light source handheld 3D scanner offers quite a large single-scan range. In rapid mode, the product works within a wider depth of field up to 200–700 mm and provides a 420 x 440 mm FOV with a distance between points from 0.25 mm to 3 mm. For laser mode, there is an outstanding 350–610 mm depth of field along with a max FOV of 380 x 400 mm and 0.05–3 mm distance between points.

Scanning tips

Overall tips for better experience with the EinScan HX2 handheld 3D scanner:

• When using the Rapid Scan Mode, apply a matte spray to scan dark color surface, shiny, and transparent objects
• Scan with a dark background
• Use correct scanner settings
• Fine-tune your scanner
• Create a controlled environment
• Avoid scanning moving objects

The Laser Scan mode (laser light source) of the EinScan HX2 is designed for:

• Scanning objects with a transparent, black, or shiny surface
• Scanning with markers

The Rapid Scan mode (blue LED light source) of the EinScan HX2 is designed for:

• A fast scanning experience
• Scanning objects with good geometry with the use of markers, feature, hybrid, and texture align modes

Scanner controls

Engineered for portable and easy operation, the EinScan HX2 represents an ergonomic plug-and-play device with user-friendly software. To begin using the EinScan HX2 LED light & blue laser scanner to your heart's content, just connect it to your computer with the dedicated USB cable and complete the setup as per the manual.

Software

The hybrid LED light and blue laser EinScan HX2 3D scanner comes with a proprietary ExModel software solution. It is a professional user friendly software for high quality 3D scanning and wider data processing that offers a high variety of advanced functions for data editing and reverse engineering. For instance, it features such editing tools as smoothing, simplification, manual and automatic hole filling, and sharpening.

What’s in the box

• EinScan HX2 blue laser & LED light source handheld 3D scanner
• Power adapter
• Power cable
• Calibration board
• Calibration board support
• Markers
• Marker removal tool
• USB drive

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

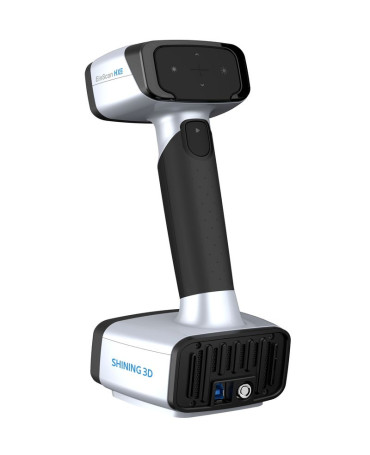

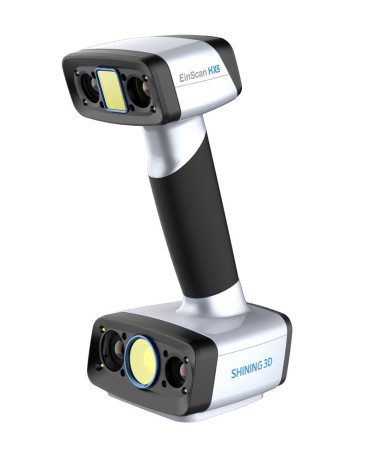

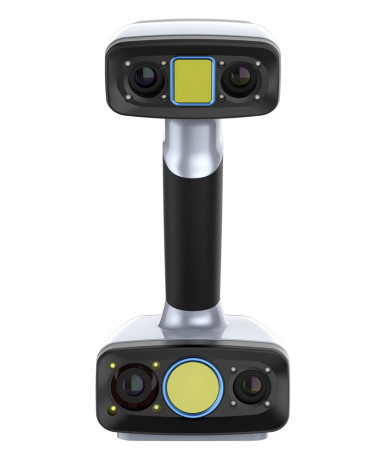

The hybrid light source handheld 3D scanner EinScan HX2 is available in gray with black trims. Its neatly-looking design makes it ideal for both professional and everyday applications.

The scanner weighs just 1.57 lb (0.71 kg) and features a compact size of 4.3 x 4.3 x 9 inches (108 x 110 x 237mm), making it a portable and easy-to-carry device.

Price

The price of the EinScan HX2 3D scanner with hybrid blue laser & LED light sources is $9,999.00, which is reasonable considering its functionality, efficiency, versatility, and reliable results.

Certification

Due to quality service, Top 3D Shop has been awarded by Shining 3D and acknowledged as Gold EinScan Expert.
