Scantech MSCAN Photogrammetry System

MSCAN is a photogrammetry system developed by Scantech. It is ideal for measuring and positioning large volumes. The system can individually measure the sizes and deformations of big objects. Also, it can be paired with a portable scanner to increase its accuracy and reduce the number of cumulative errors that might occur when scanning big volumes.

MSCAN is an accurate and stable industrial camera capable of calculating and displaying a 3D point cloud from the scanned surfaces in real-time. It can transmit the collected data with a speed of up to 1Gbps. It is engineered with an auxiliary light, which allows capturing high-precision data even in dark places.

It is often used along with the PRINCE and HSCAN 3D scanner series to efficiently measure large parts. Read on for additional details.

For example, it has been used to 3D scan and inspect the head of a subway in order to detect any deformation. Look at the pictures to see the final results.

Specifications:

• Scan accuracy
• Scan volume
• Scanner controls
• What’s in the box
• Look and feel
• Price

Scan accuracy

MSCAN is a photogrammetry system that can measure large volumes with a volumetric accuracy of 25 microns.

The image below shows the comparison between the subway head color map and the original CAD.

Scan volume

MSCAN benefits from a virtually unlimited scan volume. Indeed, it is mainly used for scanning big parts.

Scanner controls

The scanner features a Gigabit Lan interface for easy operation.

What’s in the box

• MSCAN photogrammetry system
• Essential parts required to operate the device
• All the necessary cables
• Carrying case
• User’s manual

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

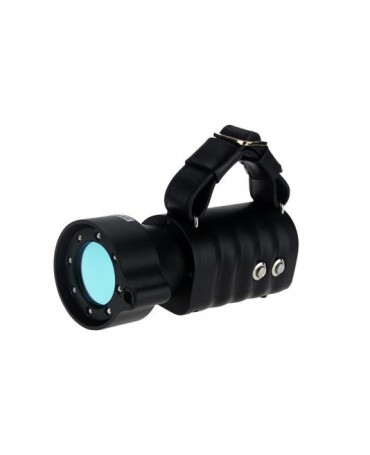

MSCAN is an all-black industrial camera used in a variety of industries, including aerospace, automotive, manufacturing, health care, and scientific research.

It weighs less than 1.1 lb (0.5 kg).

Price

To learn the current price of the scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
