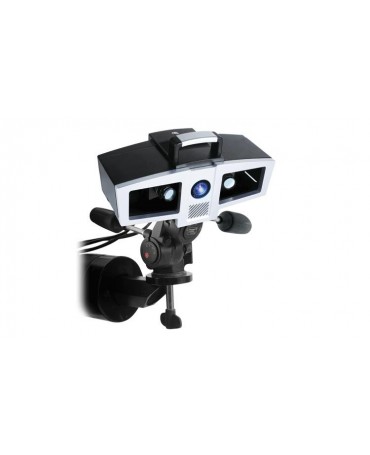

Shining 3D OptimScan-5M 3D Scanner

OptimScan-5M is an industrial, metrology-grade 3D scanner from Shining 3D. It uses a structured blue-light technology and 5.0-megapixel cameras to generate high speed, accurate scanning results in any environment conditions. It is small and portable. You can scan large-size objects with ease.

It is equipped with professional-grade, high-quality components. It allows capturing a variety of difficult-to-scan products with dark colors, complex shapes, bright and reflective surfaces as well. It is able to carry out dimension inspection and measurement with extreme precision.

It features adjustable scan ranges for wider applications and greater versatility. It can perform a single scan in under 1.5 seconds. The non-contact technology makes it ideal for high-end applications, such as military, aerospace, and defense. Continue reading for additional details.

Specifications:

• Scan accuracy
• Scan volume
• Scanner controls
• What’s in the box
• Look and feel
• Price

Scan accuracy

OptimScan-5M is an industrial, portable 3D scanner aimed at high-end industry inspection. It can achieve a scan accuracy of 0.005mm and an overall volumetric accuracy of 0.08 mm/m. It offers a point distance range from 0.04 to 0.16 mm. It adopts two 5.0 megapixels cameras for higher resolution and quality. It lets you obtain accurate results at a consistent speed. Also, it helps to reduce the risk of human errors.

It provides two alignment modes: automatic alignment through reference points and manual alignment.

It is compatible with the Shining 3D Probe, which allows measuring difficult-to-access areas, including deep holes. 3D Probe uses an optical CMM measurement technology and supports wireless Bluetooth transmission.

Scan volume

The scanner features different scan ranges: 100 x 75 mm / 200 ×1 50 mm / 400 × 300 mm. It has a scan depth of 100 - 400 mm.

Scanner controls

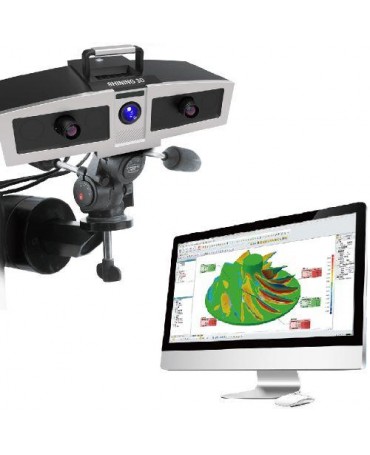

The scanner is controlled via a computer.

The dedicated software supports fixed scan and auto scan modes. It allows exporting OBJ, STL, ASC, PLY, DGM, and other file formats. It works well on Windows.

What’s in the box

• OptimScan-5M
• Tripod
• Pan-tilt
• Markers
• Quick Guide
• Power cable and adapter
• Calibration board

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

OptimScan-5M is available in a black and gray palette. Its stylish look makes it ideal for military industries, aerospace, medicine, and naval applications.

Price

To learn the current price of the scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
