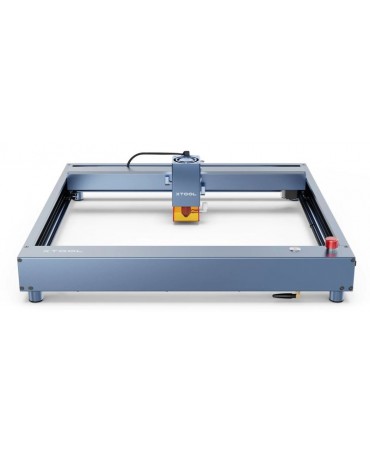

xTool D1 Pro 10W 2.0 Laser Cutter and Engraver

The xTool D1 Pro 10W 2.0 is a highly accurate and fast cutting and engraving diode laser machine. This DIY kit featuring a robust aluminum open-frame construction and stainless steel rollers and linear rails is easily assembled thanks to the detailed instructions. The device features a dual laser technology that combines two laser beams into one spot. The compressed spot of 0.08 x 0.06 mm has higher power and faster speed. The power of the D1 Pro 10W dual laser is equivalent to a 15W single laser of a conventional cutting machine. A 10-mm wood or a 5-mm acrylic plate can be cut through in one pass.

Compared to the original version, the 2.0 model features the addition of an emergency stop switch to make the machine more safety compliant, with no other functional iterations. However, the manufacturer has introduced a few optional add-ons covering even more safety and usability aspects than before. For more information, check out the Add-ons section below.

The machine features a lightning-fast maximum speed of 400 mm/s yet providing high accuracy of up to 0.004 in. Four limit switches on both axes prevent the laser head from hitting the frame and allow setting the machine’s home position and working with absolute coordinates. To ensure safe operation, the D1 Pro is equipped with a flame detector and a shake sensor. For better protection, you can buy an optional protective enclosure.

There are a lot of possible applications for the xTool D1 Pro 2.0 limited only by your imagination.

Credit: @kaydee_krafts / Instagram

Credit: @the_bearded_artisan / Instagram

The D1 Pro series also includes the20W version of the model that differs slightly in terms of its performance characteristics. For better efficiency and higher cutting requirements, the manufacturer recommends using the 20W version; as for the 10W one, it fits those pursuing fineness and engraving precision. The basic differences between two versions are presented in the table below.

Compatible materials

The xTool D1 Pro 2.0 can work with a wide range of materials. The blue laser module can be used to cut most kinds of wood, including plywood and composite, paper and cardboard, cork, acrylic, leather, and others. All these materials can be engraved as well. Besides, the blue laser can engrave coated metals, stainless steel, plastic, marble, stone, ceramic tiles, glass, and more. You can find the optimal material settings on the manufacturer’s website.

Working area

The working area of 430 x 400 mm allows you to implement large-scale design projects or to engrave multiple smaller patterns at a time which can be extremely helpful for small businesses.

The maximum workpiece height of 50 mm can be increased with the use of optional risers. Each riser set adds 45 mm to the maximum height.

Machine controls

On the right side of the machine frame there is a power and a USB port and a power switch. On top of the front panel you will find a start / stop button and a light status indicator.

The laser module is equipped with an easy and convenient focus adjustment mechanism using a special lever.

The machine can be connected to the PC using Wi-Fi or USB. It is also equipped with a TF card slot.

Software

The xTool D1 Pro 2.0 comes with the proprietary xTool Creative Space software. This free software is user-friendly, functional, and allows for firmware updates. xTool Creative Space is compatible with Windows, macOS, and iPadOS.

Those looking for enhanced functionality can use the third-party LightBurn engraving software which is more powerful and supports more file formats, such as AI, SVG, DXF, PDF, HPGL, and PLT for vector files and PNG, JPEG, BMP, TIFF, TGA, and GIF for raster images. LightBurn is a paid software but it offers a free trial period. It is compatible with Windows, macOS, and Linux.

Credit: lightburnsoftware.com

Applications

The xTool D1 Pro 2.0 is a perfect choice both for hobbyists and for small to medium laser engraving businesses. The machine is incredibly efficient and opens unlimited creative opportunities for makers and designers.

The machine can be used to make customized home decorations, like wall hangings or photo frames, accessories, like wallets, bags, belts, or phone cases, jewelry, kitchenware, toys and puzzles, and much more.

Credit: @the_bearded_artisan / Instagram

What’s in the box

• xTool D1 Pro 10W 2.0 assembly parts
• Material pack
• Aluminum protective sheet
• Parts storage box
• Tools and screws
• TF card
• All necessary cables
• Safety goggles
• User manual

For some items, package content may change. In case of any questions, please get in touch.

Add-ons

You can extend the capabilities of the xTool D1 Pro 2.0 and increase safety and convenience of use by purchasing various add-ons.

Air Assist Set

The Air Assist Set is connected to the laser head and blows away smoke and dust, protecting the laser lens. An output power of 30 L/min efficiently reduces the temperature on the material surface, preventing discoloration and ensuring a clean result with smooth cut edges.

• Compatible with: xTool D1 5W / 10W, xTool D1 Pro 2.0
• Power supply voltage: 110 / 220V
• Air flow: 25–30 L/min
• Air pressure: 30 kPa
• Power: 17 W
• Dimensions: 120.2 x 127.8 x 61.5 mm
• Weight: 1200 g

Smoke Purifier

The xTool Smoke Purifier is compatible with the D1 Pro equipped with an optional enclosure. The device is connected to the machine and features a large, 250 x 195 x 390 mm, filter with three-stage filtration including activated carbon and HEPA filters. It efficiently absorbs dust particles, toxic fumes, and unpleasant odors, allows adjusting the suction power, and works very quietly, with the noise level not exceeding 55 dB.

xTool Fire Safety Set

As the world’s first fully automated fire safety system for desktop laser cutters, this add-on boasts such capabilities as auto flame detection, alarm triggering, power cut, and fire extinguishing. All these features effectively minimize the possibility of fire accidents caused by the laser of the machine.

By using 5 fire detection sensors and integrated algorithms of light, temperature, and position inside an enclosed laser cutter, the xTool Fire Safety system is sensitive to any possible dangers. Immediately after detecting fire, it will automatically trigger the alarm, shut down the working laser in a few seconds, and automatically release the CO2 gas into the enclosed space to quench the fire with non-toxic and odorless fumes, thus preventing the machine from further damage.

Please note that this product must be used in an enclosed space. Namely, for the xTool D1 series, the system needs to be used with the xTool Enclosure.

• Compatible with xTool D1 series, M1, P2, and Laserbox
• Compatible with all 455nm blue diode laser or CO2 laser machines that are in a 0.13 m³ enclosed space

Includes:

• Control box
• Sensor hub
• Sensor 1
• Sensor 2 x4
• CO2 gas bottle x4
• Power adapter and cable
• Smart switch
• Cable clamp
• Tube + tube clamp
• Cable tie pack
• 3M tape

1064nm Infrared Laser Module

For even more creative opportunities with quality in mind, xTool offers the additional Infrared Laser Module, which allows one to finely engrave plastic and all metal materials. Apart from customizing jewelry pieces, the module provides clearer and finer results on plastic and acrylic surfaces without any burn marks and smudging effect.

• Machine power: 120W
• Laser electric power: 84W
• Laser optical power: 2W
• Laser spot: 0.03 x 0.03 mm
• Wavelength: 1064nm
• Peak power: 15KW

Honeycomb Working Panel Set

The Honeycomb Panel Set consists of an aluminum plate and a honeycomb working panel, both having dimensions of 50 x 50 cm. They are used for placing the materials to be processed and protect the working surface under the machine. The honeycomb structure speeds up smoke exhaustion and prevents the material from turning yellow.

Includes:

• 1 x honeycomb working panel 19.68 x 19.68 x 0.87 in (50 x 50 x 2.2 cm)
• 1 x aluminum panel 19.68 x 19.68 x 0.039 in (50 x 50 x 0.1 cm)

Extension Kit

The Extension Kit for the D1 Pro 2.0 increases the machine working area to the impressive 936 x 432 mm, which allows for much more efficient production.

Enclosure

As the D1 Pro 2.0 features an open-frame design, a foldable protective enclosure is indispensable for those who want to use the machine indoors safely and comfortably. The enclosure has three-layer walls, with the inner layer made of flame-retardant polyester and the middle layer being high-hardness honeycomb board material. The PU outer layer can be easily wiped and cleaned. With the enclosure, the user gets efficient ventilation and protection from dust particles, odors, and noise.

• Dimensions: 625 x 610 x 310 mm (24.6 x 24 x 12.2 in)
• Weight: 3.4 kg
• Viewing window size: 455 x 250 mm（17.9 x 9.8 in)
• Material: 4-mm honeycomb board material combined with 600D flame retardant polyester fabric
• Viewing window material: blue light filtering PC

RA2 Pro rotary attachment

The RA2 Pro 4-in-1 rotary attachment allows engraving not only on flat objects, but also on spheres, rings, and cylinders and includes roller, chuck, sphere and ring rotary.

With additional risers, you can engrave on objects with a diameter of 3–198 mm. The use of the rotary attachment greatly expands the scope of application for the D1 Pro 2.0 laser engraver, providing even more room for creativity.

• Dimensions: 321 x 138 x 105 mm
• Compatible with: xTool D1, D1 Pro, and other open laser engravers
• Gear ratio: Chuck 4:1
• Chuck diameter: 50 mm
• Engrave diameter range (with additional risers): Roller: 3–198 mm; Chuck: 0–100 mm; Sphere: 25–100 mm; Ring: 11–70 mm
• Software: Laserbox basic / LightBurn / LightGRBL

xTool Risers

It is also possible to purchase a set of risers separately. Used with the xTool D1 Pro 2.0, they facilitate the engraving of higher objects by increasing the height of the machine. The risers set contain 4 packs, which are used on the four corners of the D1 Pro. Each set can increase the engraving height by 45 mm and supports stacking use.

When engraving flat materials without the rotary attachment:

When engraving cylindrical materials with the rotary attachment:

Material Package

The Laser Material Explore Kit includes 111 pieces of 17 material types and provides everything you need for your creative projects.

Look and feel

The xTool D1 Pro 2.0 desktop laser cutter and engraver is available in a metal gray or golden red color scheme. Its stylish design makes it ideal for any studio or workshop as well as for home applications.

The machine dimensions are 23.6 x 23.2 x 5.9 in (600 x 590 x 150 mm). It weighs approximately 11 lb (5.5 kg).

Price

The price for the xTool D1 Pro 10W 2.0 laser cutter and engraver is $668.99, which is reasonable considering its high performance and versatility.
