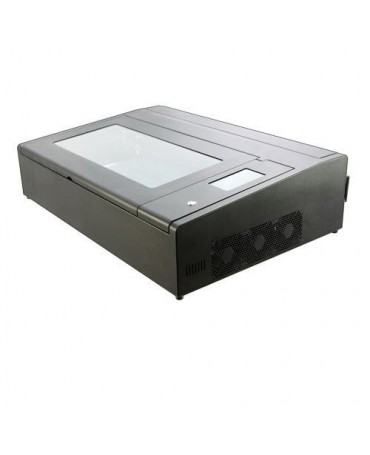

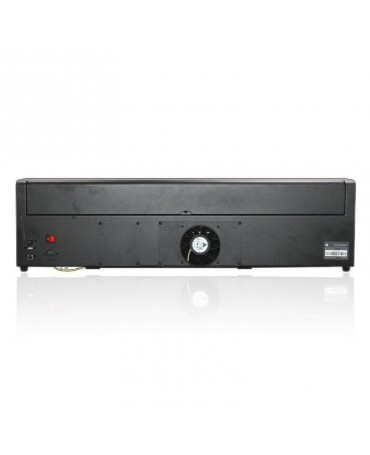

FLUX Beambox Pro 50W Laser Cutter

The Beambox Pro is the most powerful machine of all the FLUX laser cutters and engravers. It is equipped with a 50W CO2 laser tube operating at 10,640 nm. It can cut and engrave on wood, leather, cardboard, acrylic, rubber, foods, and also engrave on anodized aluminum and stainless steel. The Beambox Pro employs a high-resolution laser smaller than the width of a human hair that engraves with 0.05 mm layer depths at 1,000 DPI resolution. Moreover, the device is equipped with premium quality rails making for increased stability and durability. It is a safe and smartly designed fully enclosed machine with intuitive user interface and smart lid detection: the Pro model is put on hold automatically in case the lid has been opened during operation.  Besides, the machine can be shut down manually by using a single emergency power switch.

The Beambox Pro smart desktop laser cutter is equipped with a powerful air pump and exhaust fans that help extract smokes and fumes and prevent material from catching fire. The filters have to be purchased additionally. There is also an air assist system consisting of several integrated ventilation devices that blow the smoke away from the laser lens and keep it clean. In case you'd like to unlock the full potential of the machine and engrave on curved objects (e.g. glassware, bottles), you can purchase an easy-to-install rotary extension for the machine. With it, you can decorate and customize a wide variety of products in any unique shape or style.

Compared to the Beambox Compact model, the FLUX Beambox Pro features a higher laser power (50W vs. 40W), which lets it cut up to 12 mm of material thickness.

Take a look at this originally designed acrylic laser cut piece. The edge finish is quite on point, don’t you think?

Credit: Maker’s Muse / YouTube

And here’s a wood engraving of a toy patent that took about 13 minutes to complete. Notice how well-detailed and accurate the engraving is.

Due to its various safety measures, budget-friendly price and desktop-sized design, the machine is suitable for any home, school, or small businesses.

Specifications:

• Compatible materials
• Working area
• Machine controls
• What’s in the box
• Look and feel
• Price

Compatible materials

The FLUX Beambox Pro is equipped with a powerful CO2 laser which can cut and engrave organic materials and even engrave certain metals. In the picture below, you will find the maximum cutting thickness for each material supported by the Pro model.

Take a look at the following examples to assess the material processing capabilities of the Beambox Pro laser cutter & engraver:

Working area

The maximum working area is 600 x 375 x 80 mm, which is more than enough for professional and household use.

Credit: Maker’s Muse / YouTube

There is a honeycomb structure tray for materials that are up to 3 cm thick. The tray can be adjusted manually or removed to accommodate materials up to 8 cm thick.

Machine controls

The Beambox Pro can be controlled remotely via Ethernet or Wi-Fi. It is also possible to import your files to the Beambox directly using USB or choose from the recent task list on the touch panel. The machine's built-in color touchscreen with a neat-looking UI is perfectly suitable for effortless standalone operation.

Credit: Maker’s Muse / YouTube

The Beambox laser cutter and engraver works with Beam Studio — free in-house developed hassle-free software that provides a smooth crafting experience. Besides, there's also an iOS/Android app Beam Go that lets you control the device remotely. The highly integrated software lets you edit texts, vector files (monochrome, gray scale), bitmap images, align and distribute objects, and more.

The built-in camera alignment and preview option is one of the most interesting and useful features that the Beambox Pro offers. Thanks to the built-in HD camera, one can place and preview the design on any material as well as rotate it and scale to see what the final result will look like.

What’s in the box

• Beambox Pro laser cutter & engraver
• Laser engraving head
• Laser cutting head
• Power cord
• Toolbox
• Spare parts
• User manual

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

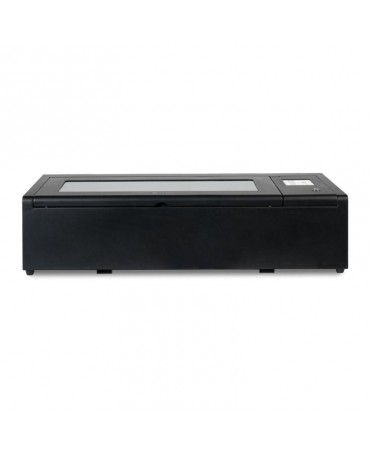

The Beambox Pro is available in classic black with a transparent window. Its stylish appearance makes it ideal for a number of professional and personal applications. The outer dimensions of the machines are 250 x 1030 x 670 mm (9.84" x 40.55" x 26.38") and it weighs 48 kg (105.8 lbs).

Price

The price of the Beambox Pro powerful desktop laser cutter & engraver is $4,255.00, which is reasonable considering its functionality, precision, and premium laser performance.
