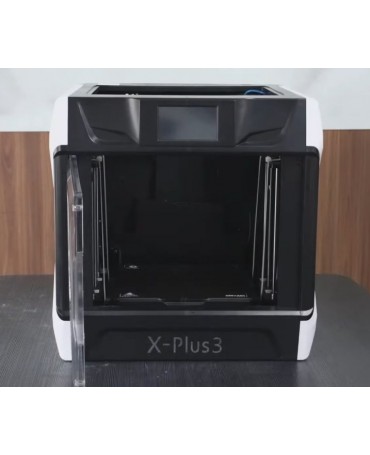

QIDI X-PLUS 3 HT FDM 3D Printer

The QIDI Tech X-PLUS 3 is the successor to the X-PLUS 3D printer from the latest lineup of QIDI machines. In many aspects, the device is similar to the more advancedX-MAX 3, with the difference in a slightly smaller print volume and the lack of a carbon air filter. The printer comes pre-assembled and is quick and easy to set up and use. Based on FDM (Fused Deposition Modeling) technology, it boasts a bunch of useful features and impressive speed characteristics making it one of the best machines in its price range. The model combines the highest precision 3D technology with quiet printing, air purification, and Wi-Fi connection.

The enclosed build chamber of the X-PLUS 3 has an independent heater and can reach 65 °C, which reduces warping and delamination with high-temperature filaments. You can remove the transparent lid of the printer for faster part cooling when printing with low-temperature filaments, such as PLA.

The QIDI X-PLUS 3 uses a CoreXY structure which allows for extremely fast printing speeds of up to 600 mm/s and acceleration of 20000 mm/s². The Klipper firmware makes it possible to introduce the resonance compensation feature to reduce vibrations at high speeds. Another way to achieve faster and smoother movements is the use of carbon rods on the X-axis and a lightweight extruder, which allows reducing the weight of the printhead with the X-axis to only 600 g. The auto bed leveling function uses a capacitive sensor to probe the print bed in 16 points to ensure the build plate flatness and good print adhesion.

Due to its professional printing capabilities, the QIDI X-PLUS 3 is great for rapid prototyping and creating conceptual models, figures, mechanical parts, and more. Common prints include tools, decor, toys, phone cases, DIY projects, and replacement parts. As for its high-end features such as enhanced precision and high-temperature material processing, one can also use this machine for medical devices and industrial applications.

The following printed models clearly demonstate the advanced printing capabilities of the X-PLUS 3:

Credit: @art3dchoix / Instagram

Credit: @art3dchoix / Instagram

Credit: @qiditech_official / Instagram

Specifications:

• Print quality
• Materials
• Build volume
• Printer controls and software
• What’s in the box
• Look and feel
• Price

Print quality

The QIDI Tech X-PLUS 3 is equipped with a powerful direct drive extruder with a 9.5:1 gear ratio and a maximum flow rate of 35 mm³/s. The hot end can reach a maximum printing temperature of 350 °C and provides a fast heat-up time and consistent extrusion. The machine comes with two different types of extruder assembly. Apart from the default copper alloy nozzle for processing common filaments, the machine is supplied with a hardened steel nozzle for printing with abrasive materials.

A standard 0.4 mm nozzle can be replaced with optional 0.2, 0.6, or 0.8 mm nozzles. With a minimum layer height of 50 microns, the X-PLUS 3 ensures precise printing quality and produces accurate models with smooth surface finish. The print bed heats up to 120 °C and features a magnetic flexible printing plate that ensures good adhesion and easy print removal. With a new cooling system, the machine greatly reduces the risk of clogs. In addition, double Z-axis driver ensures more stable and quality outputs when you print large model size.

Time: 1h 40min

Material: ABS-G

Materials

Due to its high-temp extruder and heated build chamber, the X-PLUS 3 can work with a wide range of consumer materials as well as engineering-grade thermoplastics. Thus, it can reliably print Nylon, Carbon Fiber, PC, and others. The printer is compatible with both proprietary and third-party filaments.

Credit: @qiditech_official / Instagram

Build volume

The X-PLUS 3 is equipped with a pretty large build chamber of 280 x 280 x 270 mm, which is enough for printing sizable parts. For user convenience, the build chamber has integrated LED lights.

Printer controls and software

The X-PLUS 3 is controlled via a 5" color touch screen with an intuitive user interface. The machine supports Wi-Fi, Ethernet, and USB connectivity.

Based on the popular Cura slicer software, QIDI Print has normal and expert modes to provide maximum flexibility both for beginners and experienced users. The QIDI software runs on Windows, macOS, and Linux. The printer is also compatible with Cura, Simplify3D, or PrusaSlicer.

What’s in the box

• QIDI X-PLUS 3 3D printer
• Two hotends
• Filament dryer box
• Spool of filament
• Filament spool holder
• Tool set
• 0.4 mm nozzle cleaning tool
• Desiccant
• Power cord
• Ethernet cable
• Scraper
• Glue stick
• USB 2.0 stick
• Spare parts kit

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

The QIDI X-PLUS 3 3D printer is available in black and white. Its stylish look and enclosed design make it ideal for any hobbyist or professional application.

The machine dimensions are 20.1 x 20.7 x 20.8 in (511 x 527 x 529 mm). It weighs 43 lb (19.5 kg). The built-in filament holder is mounted inside the machine.

Price

The price for the QIDI X-PLUS 3 3D printer is $829.00, which is reasonable considering its high performance, fast printing speed, and all the features making it an accessible and convenient device for high-performance materials.
