Phrozen Sonic Mega 8K S 3D printer

The Phrozen Sonic Mega 8K S is a large-format mono-LCD 3D printer that boasts a long-life monochrome LCD screen with ultra-high definition making it a professional machine capable of creating remarkably detailed models. Similar to its predecessor, theSonic Mega 8K, with a 15" LCD and perforated build plate, it offers an astonishing print area, nevertheless more compact than in the original model. Besides, equipped with the new high-speed system, the Mega 8K S prints faster than ever, producing up to 80 1/32 models in 1.5 hours.

Among other smart features, the machine offers a dedicated ACF release film for the screen providing great adhesion and smooth print removal, convenient lift-up lid, built-in drip hanger for better cost efficiency, and intuitive software with a number of advanced tools. The open material system allows using a wide range of consumables with different properties to get the desired results.

To ensure maximum user friendliness, the Sonic Mega 8K S is supplied with a pre-calibrated build plate, so it is ready for printing right out of the box.

Due to its ability to produce top-quality detailed models in a smart, convenient, and cost-effective way, the Phrozen Sonic Mega 8K S is a great tool for personal and professional use in various creative spheres, including modeling, prototyping, mass production, etc.

To ensure streamlined operation, the manufacturer offers a set of thoughtful add-ons for all stages of resin 3D printing, such as the Phrozen Pump & Fill (automated resin feeder with seamless integration), Wash Mega S, Cure Mega S, and Sonic Saber (ultrasonic cutter). All these are available in the Add-ons & Extras section above.

Specifications:

• Print quality
• Materials
• Build volume
• Printer controls and software
• What’s in the box
• Look and feel
• Price

Print quality

The Phrozen Sonic Mega 8K S is a large-format LCD 3D printer that can print layers at a minimum layer height of 10 microns, with an XY positioning accuracy of 43 µm. This way, you can produce objects with extremely smooth exterior surfaces and fine detailing.

Just like with the original Mega 8K model, the powerful industry-leading 15" 8K monochrome LCD screen makes for the unprecedented quality of outputs produced with the device.

Materials

The Phrozen Sonic Mega 8K S 3D printer offers a variety of materials to choose from. It is compatible with both self-developed and 3rd party 405 nm UV resins. The manufacturer’s resin profile database includes ready-made profiles for 20+ different resins, including ABS-like Resin, TR250 High Temp Resin, Nylon-Green Tough Resin and a variety of Castable Resins.

Moreover, the Mega 8K S is equipped with a built-in all-metal drip hanger providing a safer and more efficient way to save resin and avoid messy drops all around your workspace. By letting resin drip on an angle after printing, this device saves every tiny bit of material and makes it easier to clean the build plate.

Build volume

The Phrozen Sonic Mega 8K S offers a large build area of 330 x 185 x 300 mm (13 x 7.3 x 11.8 in) that lets you make a single huge model as a whole or simultaneously print multiple smaller ones. Equipped with a 15" perforated build plate, the Mega 8K S is your best choice when it comes to mass production, since the printer can comfortably fit up to 80 of these 1/32 soldier models in one batch.

Printer controls and software

The Sonic Mega 8K S can be controlled via a built-in 3.5" LCD touch panel with a clear menu structure and user-friendly interface. Data input is performed through the USB port on the front of the device.

The printer can interact with almost any format and is compatible with CHITUBOX — 3D data preparation software optimized to work with SLA/DLP/LCD 3D printers. The slicer is available for Windows, macOS, and Linux. In addition, the Mega 8K S model comes with a CHITUBOX Pro gift card providing access to even more useful features, such as brand new auto support algorithms, a set of powerful and easy-to-use model repair tools, enhanced island detection, and more.

Top 3D Shop provides dedicated tutorials on how to successfully run CHITUBOX with your Sonic Mega 8K S 3D printer as well as the settings you need to use for your Phrozen resins.

What’s in the box

• Phrozen Sonic Mega 8K S 3D printer
• AC cable
• Personal protective equipment
• Plastic funnel
• Plastic scraper
• Metal scraper
• Allen wrenches set
• Magnetic fan cover
• Vat screws
• USB stick
• Warranty card
• After-sales service card
• PIXUP card
• CHITUBOX Pro gift card

For some items, the product’s package content may change. In case of any questions, please get in touch.

Look and feel

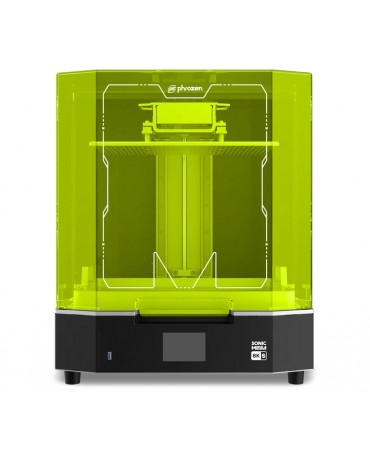

The Phrozen Sonic Mega 8K S features a black base with a transparent yellow cover. Its stylish design makes it ideal for a number of professional and personal applications. The outer dimensions of the machine are 47.2 x 38 x 56.6 сm (18.6 x 15 x 22.3 inches). It weighs 26 kg (57 lbs).

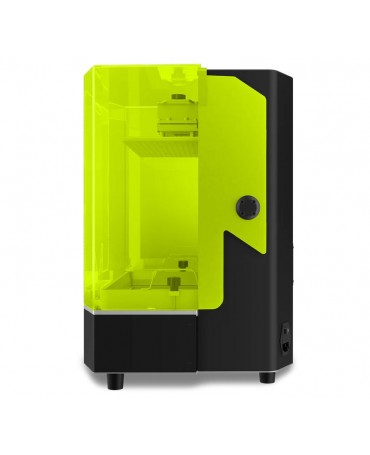

Unlike the majority of LCD 3D printers with acrylic covers, the Sonic Mega 8K S comes with a lift-up lid making for advanced space efficiency and usability. While occupying less space in your workshop or studio, it maintains easy access to the finished prints and will not accidentally knock them over during retrieval.

Price

The price for the Phrozen Sonic Mega 8K S 3D printer is $1,579.99, which is reasonable considering its resolution, build area, and overall performance.
